Electric Centrifugal Vertical Multistage Pump

Release time:2020-03-11  Browse times:464

Centrifugal Water Vertical Multistage Pump


KMP 、KMPA series of High-quality Multi stage Centrifugal Pump is a kind of non self-priming vertical centrifugal pump, which adopts standard motor and assembly mechanical seal. It has so many advantages, such as small volume, light weight, low noise, easy maintenance and nice appearance etc. KPMP、KPMPA series are widely used in daily life, industry, agriculture, water treatment system and so on.

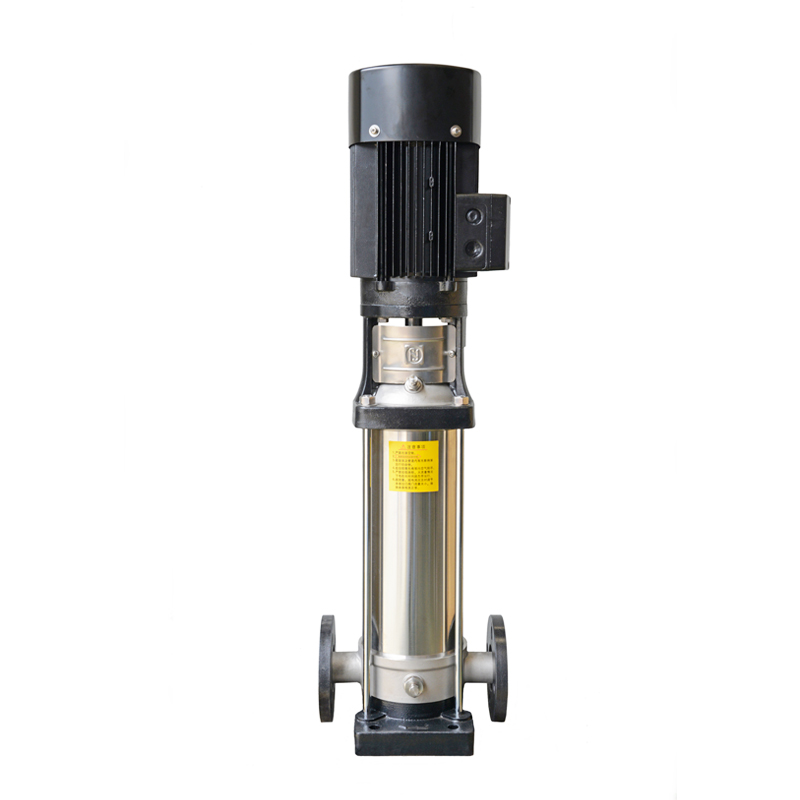

  1583897481906084.jpg  1583897481344731.jpg



· Vertical and compact structure, the inlet and outlet flanges are located at the same central line, small ares occupation and
easy installation.
· Assembly mechanical seal. making installation and maintenance safer and more convenient.and guaranteeing the reliability of the
mechanical seal.
· Wet parts are made of stainless steel, which will not contaminate medium and possess lengthy service life and elegant
appearance.

· Electric motor shaft directly and accurately connects with pump shaft through coupling.
· Low noise and less vibration.
· Standardized design and outstanding universality.




Water pump factory video:






Application:



     Cooling water system

     Water supply: water transportation in water plants, boosting system in high buildings pressure boosting in main

     Industrial liquid transportation: boiler feed, Industrial cleaning     Water treatment: swimming pools.

     Air-condition system

     Agricultural Irrigation: sprinkler Irrigation, drip-feed irrigation    Food & beverage industry

     Fire-fighting system

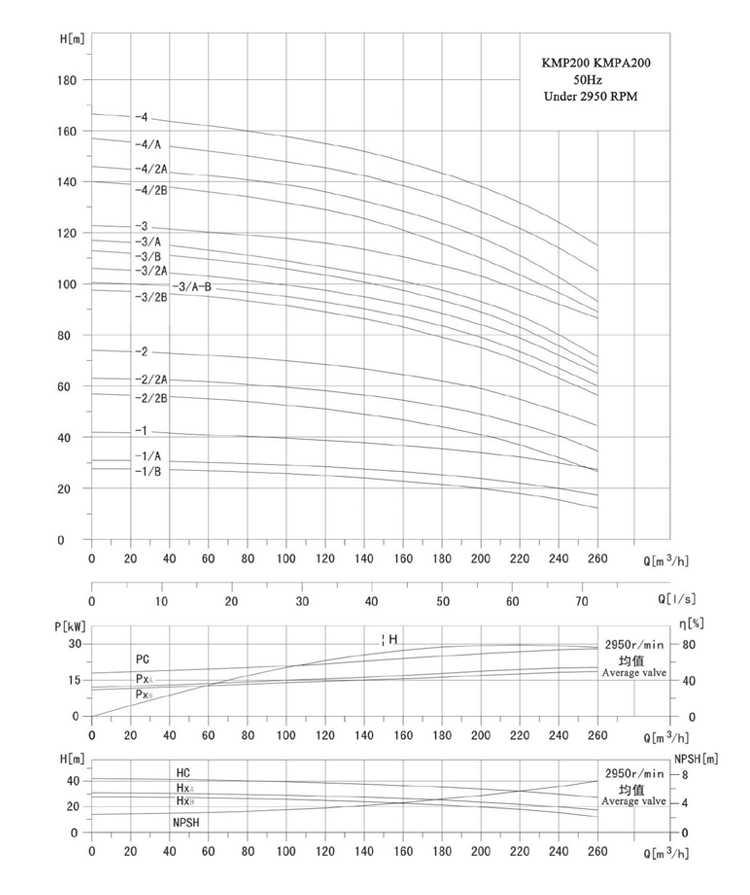

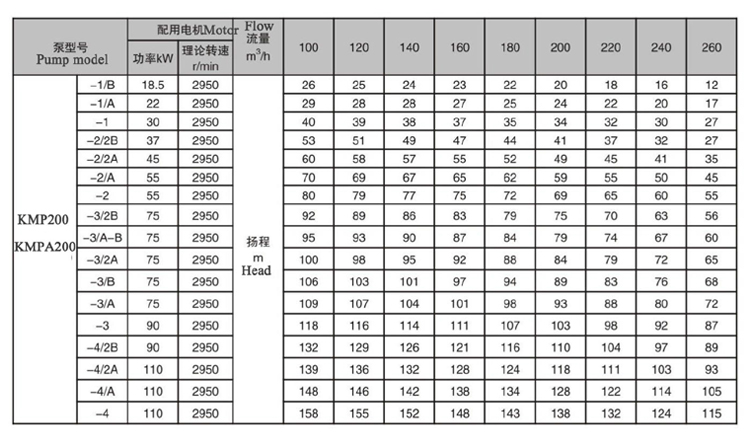

Performance:


    Flow ranges: 1﹣200m³/h

    Altitude: up to 230m

    Power: up to 110KW

    Liquid temperature: ﹣20℃~120℃

    Max. ambient temperature: +40℃

    Operation pressure: 16bar and 25bar








pmp-water pump xq 01.jpg



What is vertical multi-stage pump?

With a single ascending high pressure centrifugal pump is more economic method in the same pump shell of a common shaft contains multiple impeller. The supply and service range of all such pumps is generally called vertical multistage centrifugal pumps.


What is a multistage pump?

Multistage pump is defined as the fluid flows through several tandem pump impeller. Axial thrust balance through back-to-back level is arranged in pairs or groups to enhance.


What's the difference between a single pump and multistage pump?

Multistage pump refers to two or more than two impeller pump, top lift can be more than 120 meters; Multistage pump must be matched in the single-stage pump lift two levels of motor shell, by increasing the number of impeller and equipped with multistage motor, it can improve the service life of the pump, reduce noise.




1565761677276917.jpg     1565761677829371.jpg


1565761677644246.jpg     1565761681537733.jpg
