Online ntu turbidity meter

Release time:2020-03-11  Browse times:629

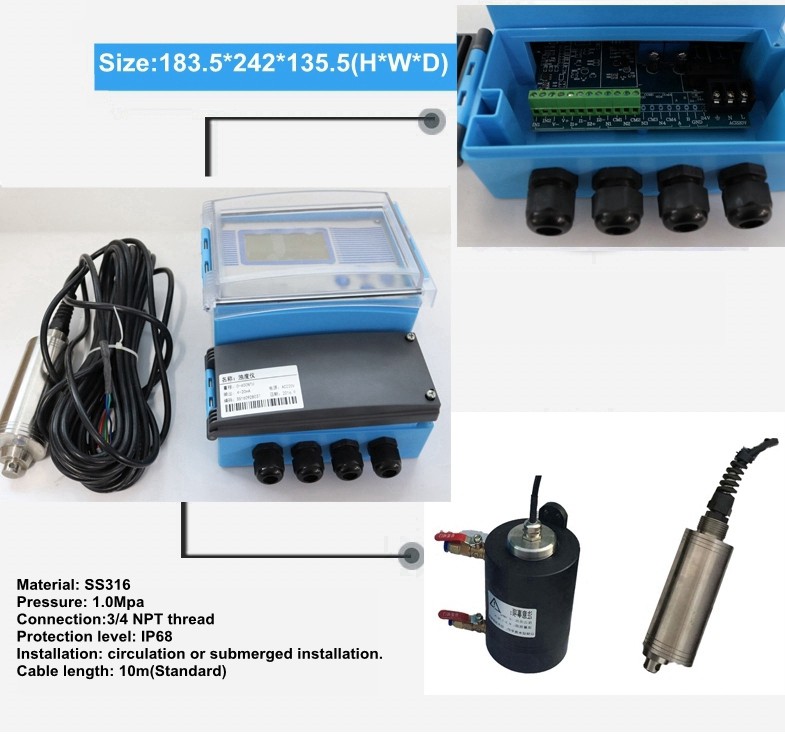

The turbidity meter is an on-line monitoring instrument designed for the measurement of water quality and turbidity in municipal wastewater and industrial wastewater treatment process. It can be used to detect the turbidity change of the biochemical treatment process, and to provide the result of continuous and accurate measurement.







Product Name:

Industrial Online Turbidity   Meter/Controller/Transmitter

Brand:

APURE

Measuring range:

0-5000 NTU

Accuracy :

±1% FS

Stability:

±1% FS

Ambient temperature :

-20-60

Relative humidity:

(65+20)%

Analog output:

4-20 mA, Load 750

Thread size:

3/4 " NPT thread

Medium pressure:

0~1MPa

Cable length

10M

Alarm output:

double relay(4 way)

Digital output:

RS485

Power supply:

AC 220V±10% 50Hz , AC/DC 24V±10%

Protection level:

IP68

Warranty period:

1 year


Characteristics:

The sample is not affected by the velocity and pressure - measuring the effect of the environment compensation.

At the same time show - multi parameter measurement values, output current, time, percentage of turbidity.
4-20mA transmission output, high and low alarm relay output control and RS485 communication output variable output, intelligent control system.
Two point calibration method using L, correction of sensor error.
The various installation options.
The various units of measurement form optional.
English - operation interface, easy to operate.






Technical parameter:

Display model: LCD liquid crystal display

Measurement unit: mg/L and NTU

Optional resolution: 0.1 NTU

Amibient temperature: -20-60

Power supply: AC220V+10% or DC24V



Technical parameter:

Material: stainless steel

Temperature range: 0-60℃

Pressure: 1.0Mpa

Process connection: 3/4 NPT

Protection level: IP68

Connecting cable: 10M(standard)
