Milton roy Mechanical diaphragm metering pump

Release time:2019-11-25  Browse times:2439

Milton roy Mechanical diaphragm metering pump



LMI’s family of electronic metering pumps offer:


• Adjustable stroke frequency and the flexibility of up to 1000:1 turndown ratio

• Manually adjustable stroke length provides accurate pump output adjustment

• NEMA 4X / IP65 enclosures for protection against corrosive environments

• Time tested electronics for reliable, repeatable performance

• Totally encapsulated electronics for protection against moisture and corrosive conditions

• Priming valves with Flourofilm ™ diaphragms and ramp style knobs for “hands free” priming




lmi Chemical Metering Pump









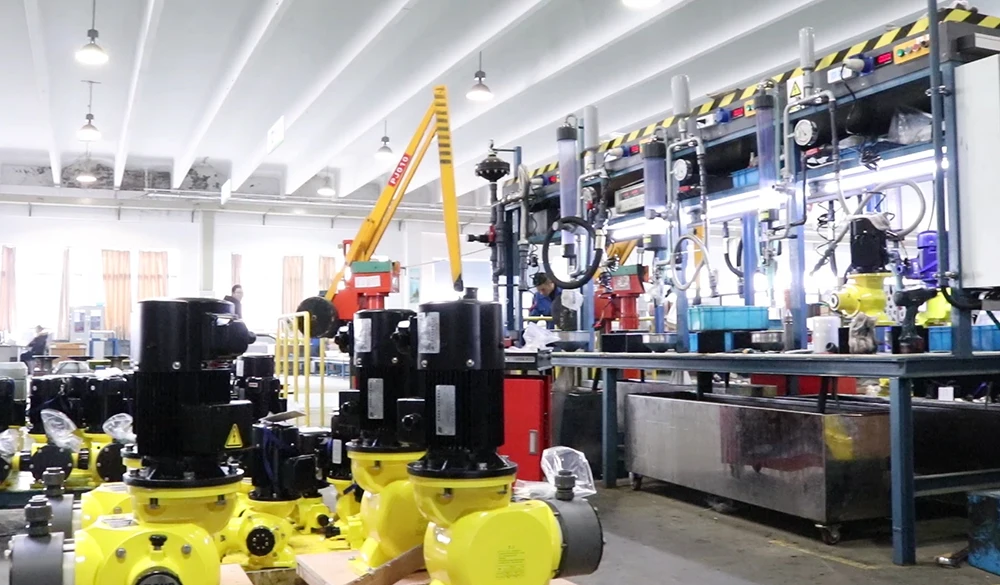

G series mechanical diaphragm metering pump

The characteristics of Variable eccentric mechanism adjustment, gentle pulsation

• various materials and pump head structure optional -PVC, PVDF, 316SS, high viscosity and slurry pump head

• mechanically driven PTFE diaphragm

• material side diaphragm protector, easy to pass through

• three automatic control modes, suitable for various control needs

• manual/electric stroke adjustment is optional

• adjustable stroke 0~100% (automatic/manual)

• the stroke can be adjusted under both static and dynamic conditions

• maximum liquid temperature 40℃*

• steady-state accuracy: ±2% (10%~100%)

• maximum suction: 3m water column *

• maximum suction pressure: 20m water column

• optional dual diaphragm head construction

• recommended maintenance cycle: ≤1.0MPa4000h  0.7 or less MPa8000h, Automatic control mode selection

• electric stroke controller



Receive external control signal, adjust the length of metering pump stroke, Thus changes the metering pump output flow.

G series metering pump chooses HE type. Among them, the GB series can choose ECC explosion-proof type.

• frequency conversion controller

Receive external control signal, adjust the speed of metering pump stroke.

Power supply: 380V/50Hz three-phase /220V/50Hz single-phase

Control signal: 4~20mA

• VARIPULSE controller:

Used for GM series metering pump, used for controlling three-phase motor,

Change the stroke frequency, so as to adjust the output flow of metering pump.




Model table of mitron GB series mechanical diaphragm pump:


Model

Flow    (l/h)

Pressure     (bar)

Motor power

Pump head

GB0080

82

10

0.55KW/0.75KW

PVC /PVDF /316Stainless steel

GB0180

167

10

GB0250

237

10

GB0350

334

10

GB0450

416

10

GB0500

464

7

GB0600

583

7

GB0700

656

3.5

GB1000

946

3.5

GB1200

1200

3.5

0.75KW

GB1500

1500

3

GB1800

1800

3





Main performance parameters


• maximum flow per head: 1800L/H

• maximum discharge pressure: 12bar

• adjustment ratio 10:1, steady-state accuracy 2%

• suction lifting height up to 3m water column

• maximum inlet pressure is 2bar

• allow material maximum temperature of 40 ℃



The main characteristics

The hydraulic end

• mechanically driven diaphragm, no diaphragm guard plate on the material side to facilitate the passage of materials

• PVC, PVDF, 316SS, high viscosity, slurry, etc.

Suitable for all kinds of materials

• self-cleaning one-way valve structure


Drive end


• adjustable eccentric mechanism to ensure smooth change of flow pulsation

• enhanced structural design for harsh operating environments

• wear-resistant ball bearing for more stable operation

• oil bath lubrication, long working life of driving parts

• the flow can be adjusted when the machine is stopped or running

Type can be player moving, electric or frequency conversion



The control mode

Electric stroke controller: accept the external control signal, adjust the stroke length

• power supply: 220v-50hz - single phase

• input signal: 4-20ma analog signal

• output signal: 4-20ma / 1-5v analog signal for recording display and control system


Frequency conversion controller: accept the external control signal, adjust the stroke speed

• power supply: 220v-50hz - single-phase / 380v-50hz - three-phase

• input signal: 4-20ma analog signal
